Ok here we go. This is a how to that will show you how to install a amp wiring kit, amp, and subwoofer in your car and wire up all them.

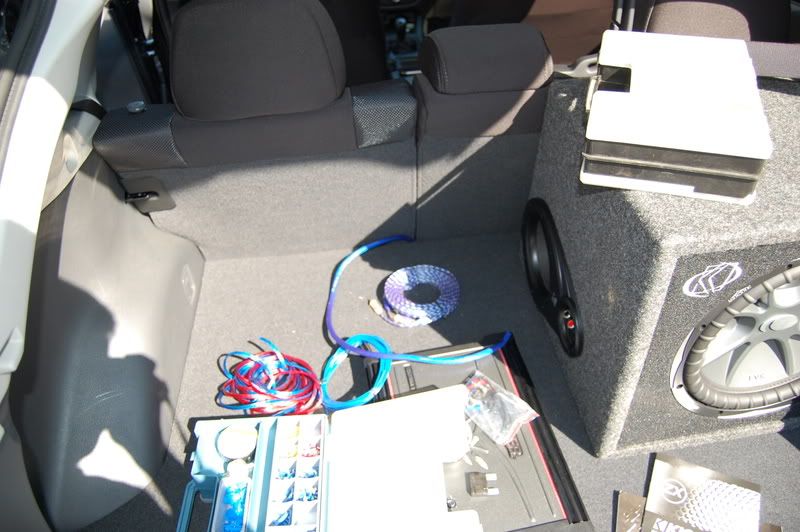

lets start with what we need, your going to need a 10mm socket, Flat head and phillips drivers, wire cutter, crimper, butt connectors, and beer.



Step 1: Pop the hood and locate your battery.


Step 2: Figure out where your going to run the power wire through the firewall. I found an awsome spot but it was a pain in the ass to get to. Theres a rubber gasket like thing that has 2 or 3 lines of some type going through it. I ended up pulling it out of the fire wall and cutting the extra nipple thats in it out and ran the wire through there. Push the power wire through from the inside its alot easier to do it that way. After you get the wire through put the gasket back.






Step 3: Remove the ddrivers side console side. Why i have no idea...


Step 4: go under the hood and relocate the battery, remove the plastic positive cover and undo the nut with the 10mm socket. Place power wire on there and tighten it up. Make sure when placing the power wire you face it the same way as the other wires or the red cover wont go back on right.

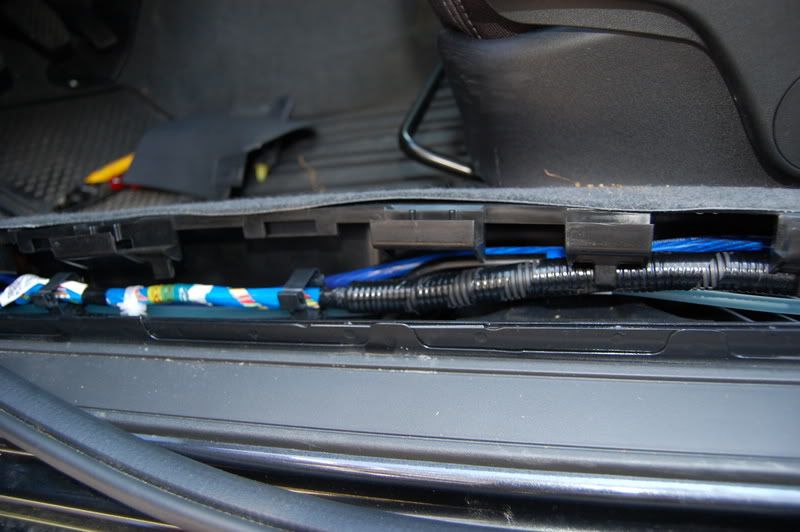

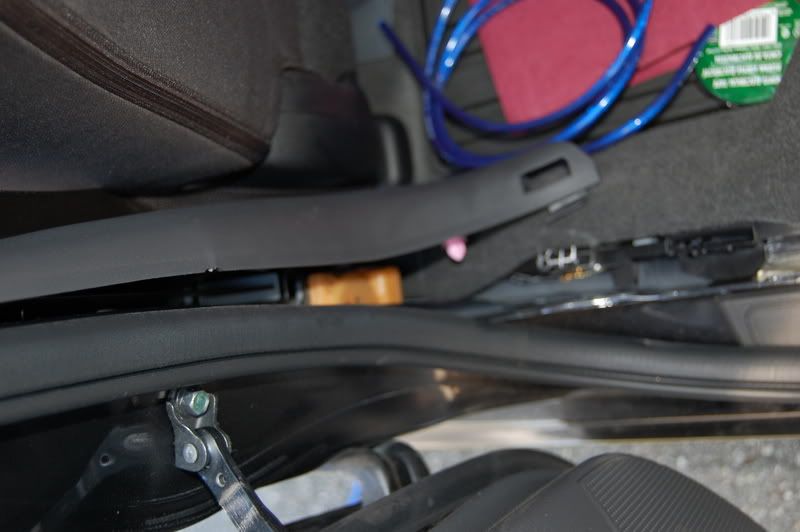

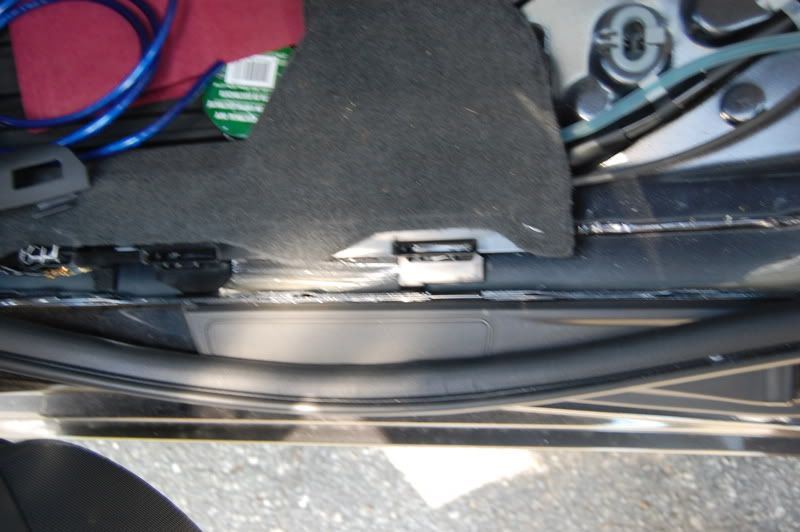

Step 5: fun part starts here. Start removing the molding, I found the easiest way to do this was to pry the molding out by turning it twords the outside of the car. Only broke one clip :) Also remove the door gasket at this point, dont fully remove it though. Pull the carpet up enough to get your power wire , remote wire and the rca cable under it. After you do that you can put the front back together.

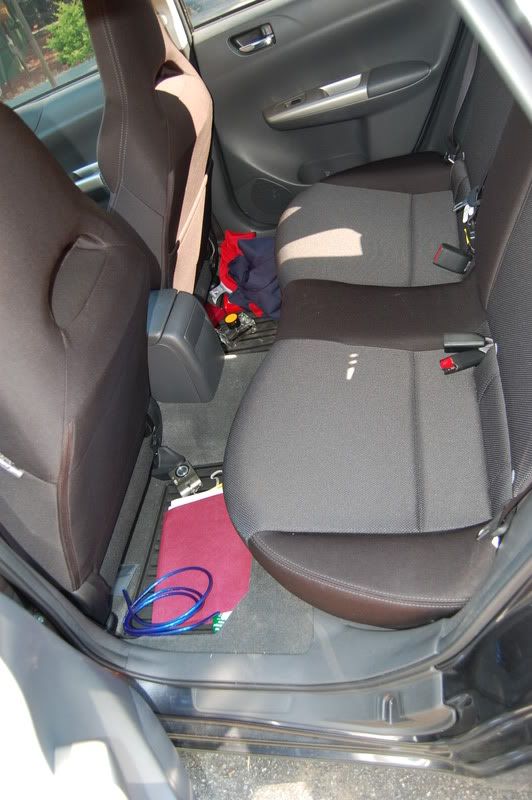

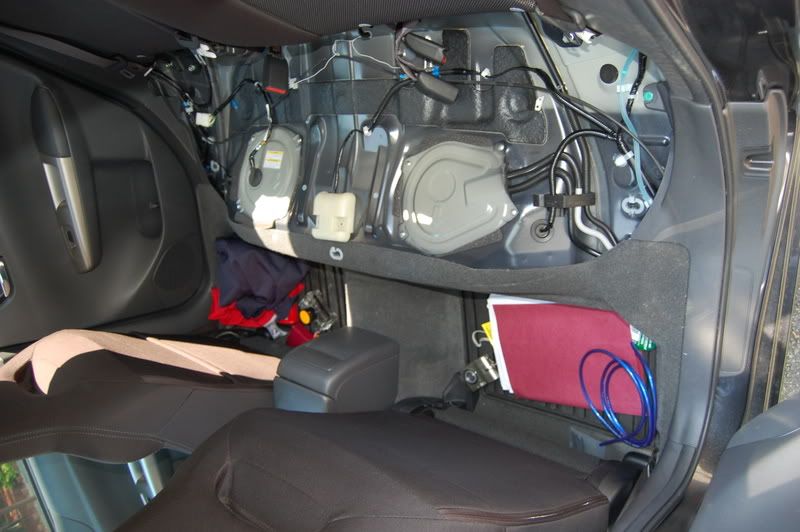

Step 6: Pop your back seat out by pulling up on it on both sides. place off to the side.



Step 7: remove the molding the same way we did in the front. also remove the molding between the front and rear doors. it pops out if you pull hard enough. careful not to loose any of the push clip things.




Step 8: Run the wires under the rear carpet like we did for the front. Then i placed the wires through and under the seat backs so it went into the trunck area.

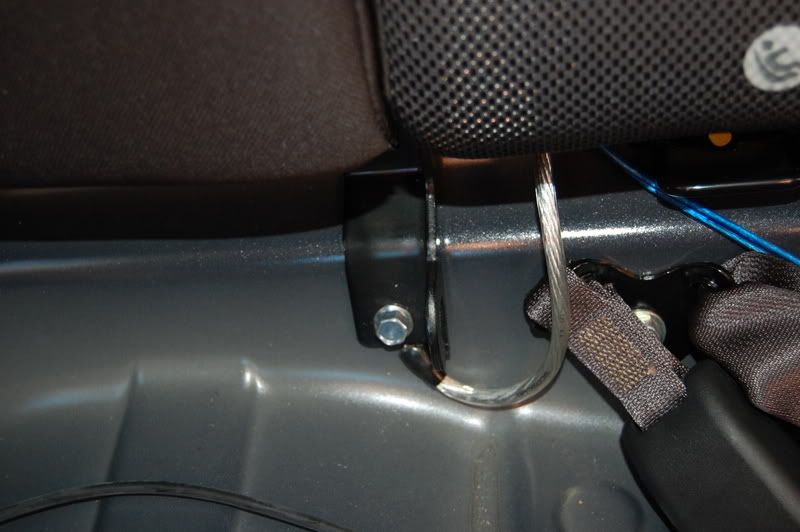

Step 9: Remove this nut and place your amp ground wire between it and tighten it back up. the size is 10mm

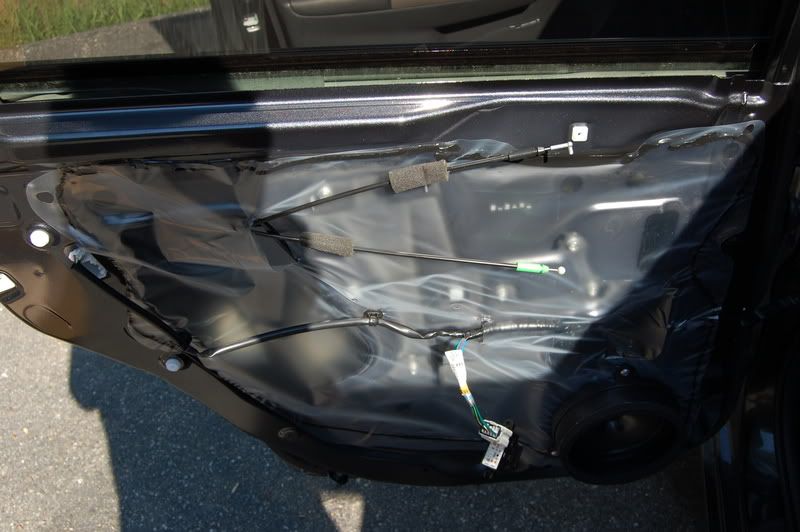

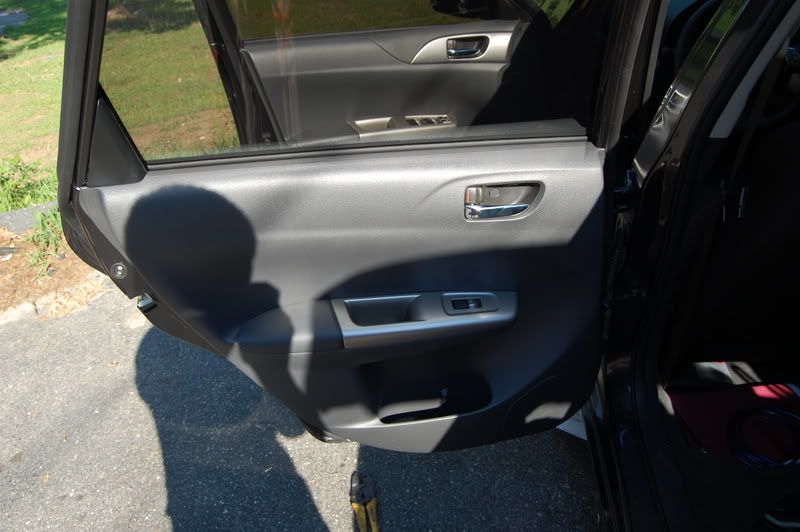

Step 10: disasemble the rear door..... so it looks like this.

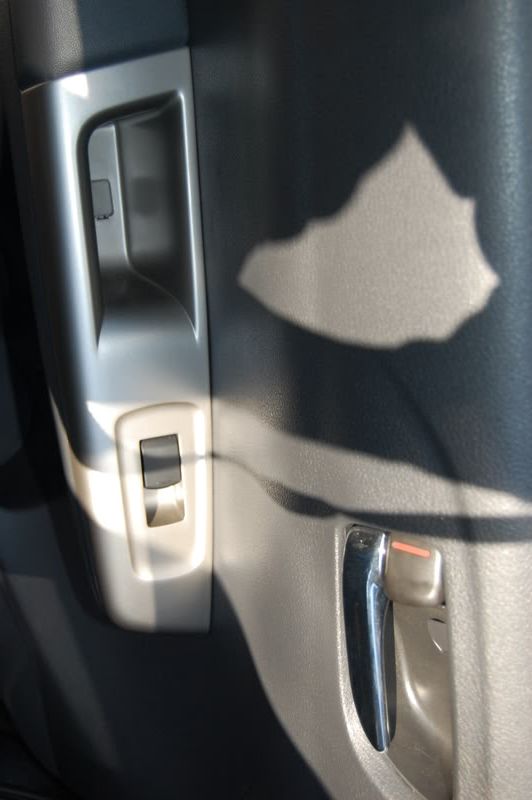

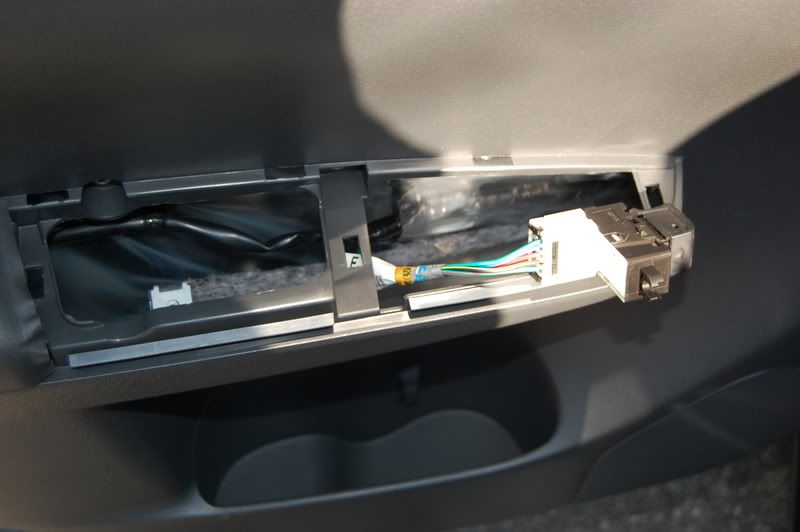

Step 11: ok ok ill tell you how to get it apart, dont want you to break anything. First we are going to remove the 2 phillips screw that are located in the hand cup and begind the handle. then we are going to pop the piece that has the window button on it out, pull up easy from the side twords the door hinges. Disconnect the window button wire, I couldnt get it to come out so i just popped out the whole switch.




Step 12: dont go pulling on the door yet. theres 2 more screws to undo. They are located behind where the plastic peice is we removed. also remove the thingy in the second picture by pulling it twoeds the inside of the door. second picture isnt mine its scooter11's i forgot to take a pic of that part.



Step 13: Pull easy on the plastic so it pops off, start over by the child safety lock, theres a nice spot to start. Once you pop it off althe way around lift up and pop the panel off the door frame. Place off to t he side, it scratchs easy!

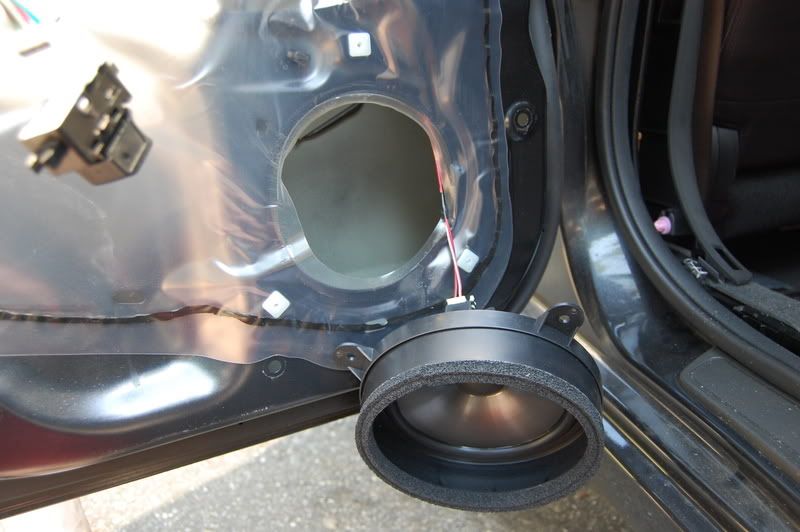

Step 14: remove the speaker via the 3 screws, unplug it and place off to the side. If your going to install after market speakers this would be the time to turn the old ones into frizbees.


Step 15: While i was in here i ran some better speaker wire for when i upgrade to new speakers, and the way i was going to run the amp i needed to run a wire off the speakers anyway. To run the wire pop the rubber thing from between the car and the boor off on both sides. run wire from the bottom of the rubber thing through to the top. This was easier than i thought it would be. Once done pop the rubber thing back in.



Step 16: Run wire into car and dowen through the door and out the speaker hole. Connect the wire to the speaker wires that are already there with connectors.


Step 17: reassemble the door. if you have new speakers put those in instread of the old ones.



Step 18: Repeat for other doors. run the wires down and through to the cargo area/trunck like we did with the power wire, remote and rca cable.

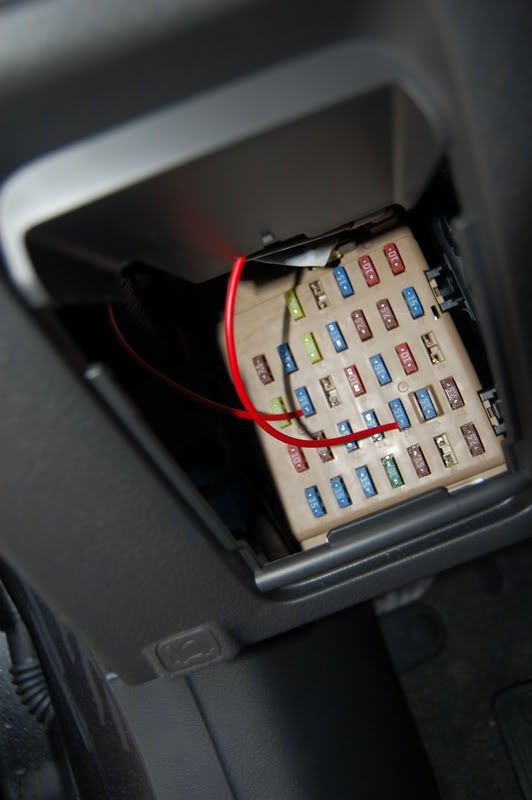

Step 19: i dont have a aftermarket head unit yet so i hooled my remote line into the fuse panel, off one of the fuses that turns on when you turn the key. see picture for what fuse i used. The lower wire was the fuse.


Step 20: mount amp to your box then hook up all the wires to your amp. it should be labeled.


Step 21: after hearing what it sounded like i decided to get a hi to low converter. I still have to go get it. ill add that wiring in here once i do it.

Step 22: insert fuse into power wire under the hood and close hood. turn key and check if amp turns on, if so your all set to adjust the amp, if you get no power you diud somthing wrong. Go back and check the wiring.

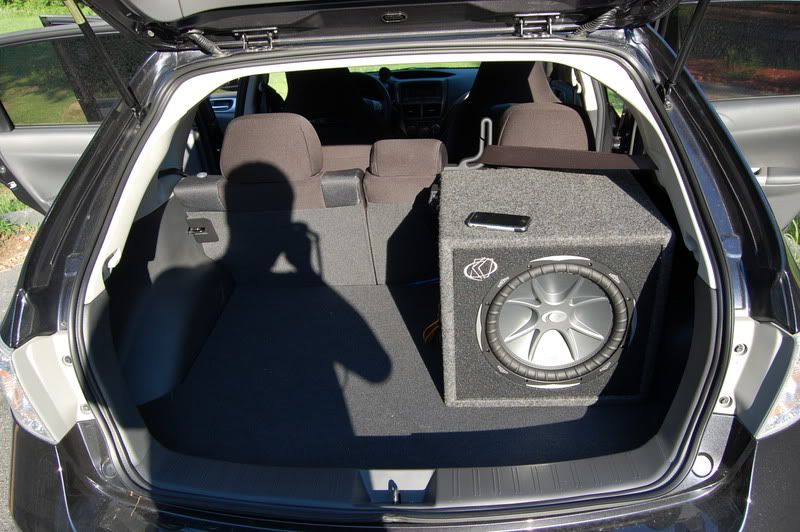

Step 23: assemble anything thats not put back together yet and then drive around and harras people by blasting music.


As always feel free to post in here with questions and or comments. All in all it took about 3 hours for me to get this done. parts that took the longest were running the speaker wire through the rubber thing and getting the power wire through the firewall.


·
